Gallery 1-Sided Steel
Short Panel- Models GD5S, GD5SV, GD4S & GD4SV
Model GD5S
- Sections are 2” thick 1-sided steel Overhead Garage Door
- Not Insulated.
- 25-gauge Steel Raised Panel with wood grain finish
- Panel Designs available: Short (Colonial) Flat Panel Carriage with Vertical Grooves
- Sections paint system backed by 15 Year Limited Warranty
- Windows 10 Year Limited Warranty
- Hardware is backed by a 3 Year Limited Warranty
- Colors Available: Standard White, Almond, Desert Tan, Sandstone, & Chocolate
Model GD5SV
- Sections are 2” thick 1-sided steel 2 Layers (steel/insulation) Overhead Garage Door
- 1 5/16” Polystyrene Insulated with Vinyl-Backed Cover R-Value=6.3
- 25-gauge Steel Raised Panel with wood grain finish
- Panel Designs available: Short (Colonial) Flat Panel Carriage with Vertical Grooves
- Sections paint system backed by 15 Year Limited Warranty
- Windows 10 Year Limited Warranty
- Hardware is backed by a 3 Year Limited Warranty
- Colors Available: Standard White, Almond, Desert Tan, Sandstone, & Chocolate
Model GD4S
- Sections are 2” thick 1-sided steel Overhead Garage Door
- Not Insulated.
- 24-gauge Steel Raised Panel with wood grain finish
- Panel Designs available: Short (Colonial) Flat Panel Carriage with Vertical Grooves
- Sections paint system backed by Limited Life Warranty
- Windows 10 Year Limited Warranty
- Hardware is backed by a 3 Year Limited Warranty
- Colors Available: Standard White, Almond, Desert Tan, & Sandstone
Model GD4SV
- Sections are 2” thick 1-sided steel 2 Layers (steel/insulation) Overhead Garage Door
- 1 5/16” Polystyrene Insulated with Vinyl-Backed Cover R-Value=6.3
- 24-gauge Steel Raised Panel with wood grain finish
- Panel Designs available: Short (Colonial) Flat Panel Carriage with Vertical Grooves
- Sections paint system backed by Limited Life Warranty
- Windows 10 Year Limited Warranty
- Hardware is backed by a 3 Year Limited Warranty
- Colors Available: Standard White, Almond, Desert Tan, & Sandstone
Extra Options
Available Colors
![Colors and Custom Paint Option - Gallery 1 Sided Steel - 7 Short Panel and 8 Long Panel](https://b2013129.smushcdn.com/2013129/wp-content/uploads/2020/12/Colors-and-Custom-Paint-Option-Gallery-1-Sided-Steel-7-Short-Panel-and-8-Long-Panel.jpg?lossy=0&strip=1&webp=1)
Note: The screen images of the colors are intended as a GUIDE only and should not be regarded as absolutely correct. Due to monitor settings, monitor pixel definitions, limitations of desktop scanners, digital photography, and dye lot variations, all colors are APPROXIMATIONS of actual colors.

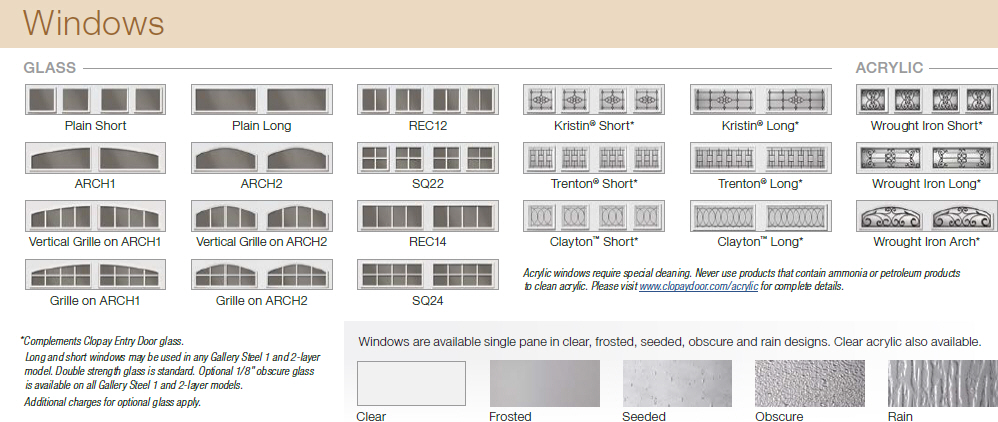

Window Designs
![Windows - Gallery 1 Sided Steel - 7 Short Panel and 8 Long Panel](https://b2013129.smushcdn.com/2013129/wp-content/uploads/2020/12/Windows-Gallery-1-Sided-Steel-7-Short-Panel-and-8-Long-Panel.jpg?lossy=0&strip=1&webp=1)

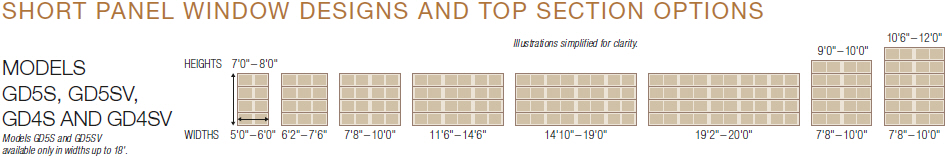

Window Designs
![Short Panel Window Designs and Top Section Options - Gallery 1 Sided Steel - 7 Short Panel](https://b2013129.smushcdn.com/2013129/wp-content/uploads/2020/12/Short-Panel-Window-Designs-and-Top-Section-Options-Gallery-1-Sided-Steel-7-Short-Panel.jpg?lossy=0&strip=1&webp=1)
![Long Top Section- Gallery 1 Sided Steel - 7 Short Panel](https://b2013129.smushcdn.com/2013129/wp-content/uploads/2020/12/Long-Top-Section-Gallery-1-Sided-Steel-7-Short-Panel.jpg?lossy=0&strip=1&webp=1)
Brochure
