Modern Steel Collection with 2-Sided Steel
Flush with Woodgrain Texture and no grooves- Models 4051, 4132, 4301, 4302, 9131, 9132, 9201 & 9202
Model 4051

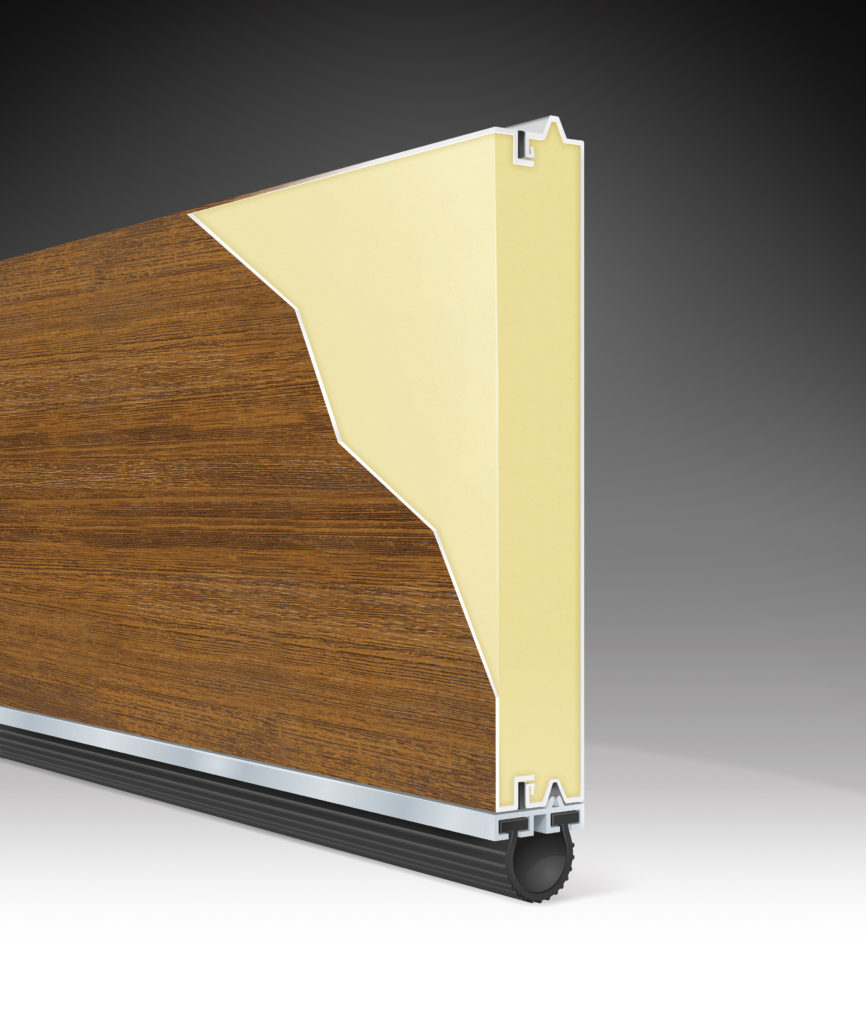

- 1 3/8” Thick 2-Sided Steel with 3 Layers (steel/insulation/steel) Overhead Garage Door
- Bonded Polystyrene Insulation with Thermal Break and R-Value= 6.5
- 27 gauge outside Steel/28 gauge inside. If black color 25 gauge outside steel/28 gauge inside
- Sections paint system backed by Limited Life Warranty
- Windows 10 Year Limited Warranty
- Hardware is backed by a 3 Year Limited Warranty
- Panel Designs available: Flush Woodgrain No Grooves
- Colors Available: Standard White, Almond, Desert Tan, Sandstone, Bronze, Chocolate, Hunter Green & Gray
- Optional Colors: Black and Ultra-Grain Cypress: Medium, Cherry, Walnut & Slate
Model 4132
- 1 3/8” Thick 2-Sided Steel with 3 Layers (steel/insulation/steel) Overhead Garage Door
- Bonded Polystyrene Insulation with Thermal Break and R-Value= 6.5
- 27 gauge outside Steel/28 gauge inside. If black color 25 gauge outside steel/28 gauge inside
- Sections paint system backed by Limited Life Warranty
- Windows 10 Year Limited Warranty
- Hardware is backed by a 3 Year Limited Warranty
- Panel Designs available: Flush Woodgrain No Grooves
- Colors Available: Standard White, Almond, Desert Tan, Sandstone, Bronze, Chocolate, Hunter Green & Gray
- Optional Colors: Black and Ultra-Grain Cypress: Medium, Cherry, Walnut & Slate
Model 4301
- 2” Thick 2-Sided Steel with 3 Layers (steel/insulation/steel) Overhead Garage Door
- Bonded Polystyrene Insulation with Thermal Break and R-Value= 9
- 27 gauge outside Steel/28 gauge inside. If black color 25 gauge outside steel/28 gauge inside
- Sections paint system backed by Limited Life Warranty
- Windows 10 Year Limited Warranty
- Hardware is backed by a 3 Year Limited Warranty
- Panel Designs available: Flush Woodgrain No Grooves
- Colors Available: Standard White, Glacier White, Almond, Desert Tan, Sandstone, Bronze, Chocolate, Mocha Brown, Hunter Green, Gray & Charcoal
Model 4302
- 2” Thick 2-Sided Steel with 3 Layers (steel/insulation/steel) Overhead Garage Door
- Bonded Polystyrene Insulation with Thermal Break and R-Value= 9
- 27 gauge outside Steel/28 gauge inside. If black color 25 gauge outside steel/28 gauge inside
- Sections paint system backed by Limited Life Warranty
- Windows 10 Year Limited Warranty
- Hardware is backed by a 3 Year Limited Warranty
- Panel Designs available: Flush Woodgrain No Grooves
- Colors Available: Standard White, Glacier White, Almond, Desert Tan, Sandstone, Bronze, Chocolate, Mocha Brown, Gray & Charcoal
- Optional Colors: Black and Ultra-Grain Cypress: Medium, Cherry, Walnut & Slate
Model 9131
- 1 3/8” Thick 2-Sided Steel with 3 Layers (steel/insulation/steel) Overhead Garage Door
- Foam in place Polyurethane Insulation with Thermal Break and R-Value= 12.9
- 27 gauge outside Steel/28 gauge inside. If black color 25 gauge outside steel/28 gauge inside
- Sections paint system backed by Limited Life Warranty
- Windows 10 Year Limited Warranty
- Hardware is backed by a 3 Year Limited Warranty
- Panel Designs available: Flush Woodgrain No Grooves
- Colors Available: Standard White, Glacier White, Almond, Desert Tan, Sandstone, Bronze, Chocolate, Mocha Brown, Hunter Green, Gray & Charcoal
- Optional Colors: Black
Model 9132
- 1 3/8” Thick 2-Sided Steel with 3 Layers (steel/insulation/steel) Overhead Garage Door
- Foam in place Polyurethane Insulation with Thermal Break and R-Value= 12.9
- 27 gauge outside Steel/28 gauge inside. If black color 25 gauge outside steel/28 gauge inside
- Sections paint system backed by Limited Life Warranty
- Windows 10 Year Limited Warranty
- Hardware is backed by a 3 Year Limited Warranty
- Panel Designs available: Flush Woodgrain No Grooves
- Colors Available: Standard White, Glacier White, Almond, Desert Tan, Sandstone, Bronze, Chocolate, Mocha Brown, Gray & Charcoal
- Optional Colors: Black and Ultra-Grain Cypress: Medium, Cherry, Walnut & Slate
Model 9201
- 2” Thick 2-Sided Steel with 3 Layers (steel/insulation/steel) Overhead Garage Door
- Foam in place Polyurethane Insulation with Thermal Break and R-Value= 18.4
- 27 gauge outside Steel/28 gauge inside. If black color 25 gauge outside steel/28 gauge inside
- Sections paint system backed by Limited Life Warranty
- Hardware is backed by a 3 Year Limited Warranty
- Windows 10 Year Limited Warranty
- Panel Designs available: Short (Colonial)
- Panel Designs available: Flush Woodgrain No Grooves
- Colors Available: Standard White, Glacier White, Almond, Desert Tan, Sandstone, Bronze, Chocolate, Mocha Brown, Hunter Green, Gray & Charcoal
- Optional Colors: Black and Ultra-Grain Classic: Medium, Cherry and Walnut
Model 9202
- 2” Thick 2-Sided Steel with 3 Layers (steel/insulation/steel) Overhead Garage Door
- Foam in place Polyurethane Insulation with Thermal Break and R-Value= 18.4
- 27 gauge outside Steel/28 gauge inside. If black color 25 gauge outside steel/28 gauge inside
- Sections paint system backed by Limited Life Warranty
- Hardware is backed by a 3 Year Limited Warranty
- Windows 10 Year Limited Warranty
- Panel Designs available: Flush Woodgrain No Grooves
- Colors Available: Standard White, Glacier White, Almond, Desert Tan, Sandstone, Bronze, Chocolate, Mocha Brown, Hunter Green, Gray & Charcoal
- Optional Colors: Black and Ultra-Grain Cypress: Medium, Cherry, Walnut & Slate
Available Colors
Note: The screen images of the colors are intended as a GUIDE only and should not be regarded as absolutely correct. Due to monitor settings, monitor pixel definitions, limitations of desktop scanners, digital photography, and dye lot variations, all colors are APPROXIMATIONS of actual colors.
Ultra Grain Finish Options
Note: The screen images of the colors are intended as a GUIDE only and should not be regarded as absolutely correct. Due to monitor settings, monitor pixel definitions, limitations of desktop scanners, digital photography, and dye lot variations, all colors are APPROXIMATIONS of actual colors.
Window Options
Panel Options
Glazing Options
Brochure
Click on the image below if you want help imagining what a Clopay garage door would look like on your home or on a sample home.
